Dairy Valve Cluster & Automatic Valve Battery
Upgrade manual valve line-ups to automated, mix-proof flow control — designed, fabricated, integrated and commissioned by ATMAN as one working system.
Discuss Your Valve UpgradeFrom Manual Valves to an Automatic Cluster

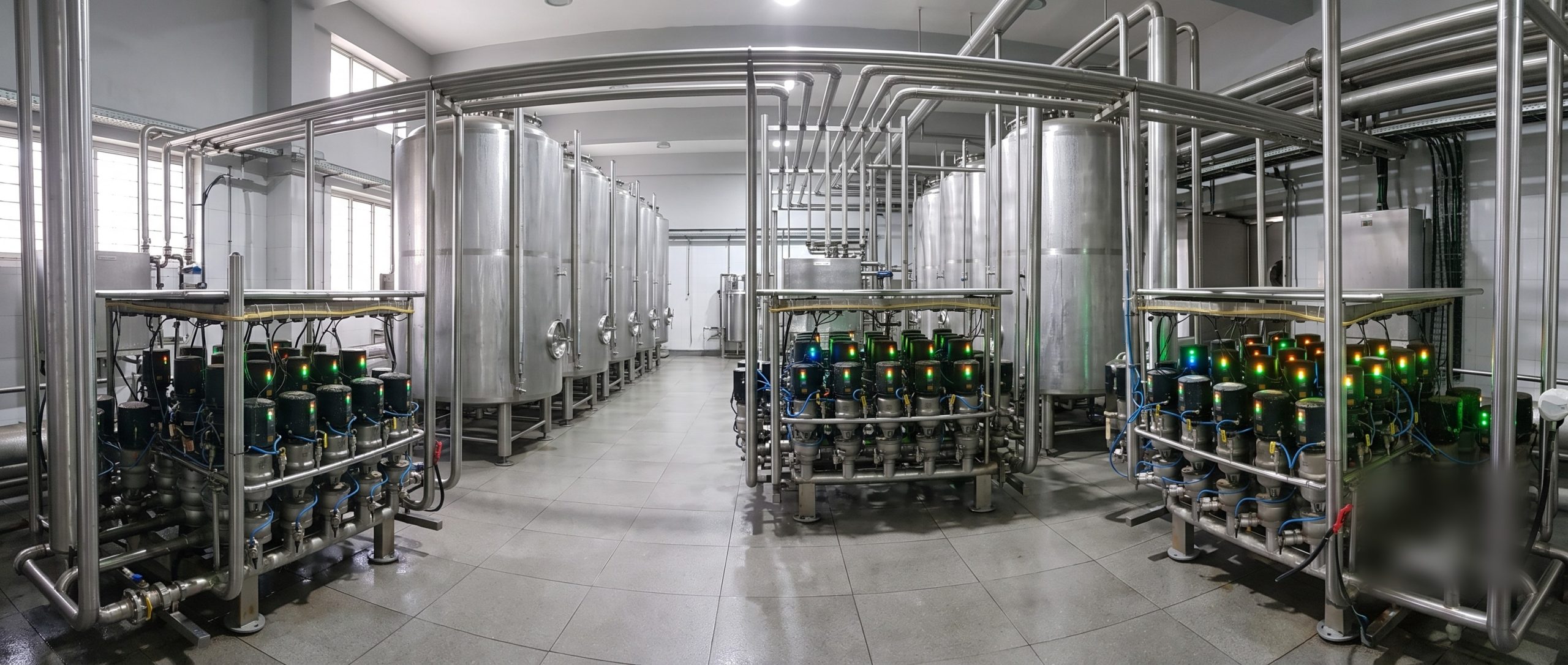

In most Indian dairies, flow between pasteurizer, tanks, CIP and filling is still routed by hand — operators opening and closing valves, swapping bends, risking cross-contamination and product loss. An automatic valve cluster replaces that manual grid with a single fabricated manifold of actuated valves under PLC/SCADA control.
One manifold. Full control.
Product routing, CIP circuits and changeovers execute automatically — with mix-proof valves that let product and cleaning run simultaneously without a single drop of cross-contamination. Fewer operators, faster changeovers, full traceability.
Valve Cluster Configurations
Engineered to your process — any capacity, any product line.
Mix-Proof (Double-Seat) Batteries
Simultaneous product and CIP flow in one manifold with zero cross-contamination — the core of any automated dairy.
Single-Seat Shut-Off & Changeover
Hygienic on/off and diversion valves for line isolation, tank selection and routing.
Butterfly Valve Manifolds
Cost-effective actuated manifolds for CIP return, water and utility routing.
Flow-Plate / Manifold Panels
Matrix routing panels for multi-tank, multi-product plants with defined flow paths.
CIP Routing Clusters
Dedicated valve nests that sequence cleaning circuits automatically across the plant.
Aseptic / Hygienic Valve Nests
3A / EHEDG-grade nests in SS316L for high-hygiene and extended-shelf-life lines.
Why Dairies Upgrade to Automatic Valve Clusters
Zero Cross-Contamination
Mix-proof valves physically separate product and CIP — the single biggest food-safety risk, eliminated.
Automated Routing
No manual line-ups. Flow paths are selected on the HMI and executed by the cluster.
CIP Without Dismantling
Clean in place, on schedule, without breaking the line — less downtime, better hygiene.
Fewer Operators, Fewer Errors
Automation removes the manual mistakes that cause batch loss and rework.
Faster Changeovers
Product-to-product and product-to-CIP switching in seconds, not manual minutes.
Full Traceability
Every valve state logged to SCADA — audit-ready records for FSSAI and buyers.
Global-Grade Components, Engineered Into One Cluster
Where the process demands it, ATMAN specifies and integrates critical valve technology from world-leading brands — GEA, Alfa Laval, SPX / APV, Tetra Pak, IDMC — engineered into a single commissioned cluster, not sold as loose parts. You get one accountable partner for design, fabrication, automation and commissioning.
Our Scope — Survey to Commissioning
Survey & Flow Study
We map your existing manual valve layout and every product / CIP flow path.
Cluster & Flow-Matrix Design
P&ID, valve schedule and flow matrix engineered to your capacity and product mix.
Manifold Fabrication (SS316L)
Hygienic, orbital-welded manifold built in food-grade stainless steel.
Actuator & Control-Head Integration
Pneumatic actuators and control heads mounted, wired and feedback-verified.
PLC / SCADA Integration
Valve logic integrated into plant automation with full HMI control and logging.
Install, Test & Commission
Site installation, wet-testing and handover with documentation and operator training.
Frequently Asked Questions
Can you upgrade our existing manual valves to an automatic cluster?
Yes — retrofitting manual valve line-ups to automated mix-proof clusters is a core ATMAN service. We survey the running plant, design the cluster around your existing layout, and commission with minimal downtime.
Do you provide mix-proof (double-seat) valves?
Yes. Mix-proof valve batteries are the heart of an automated dairy, allowing product and CIP to run simultaneously with zero cross-contamination. We specify and integrate them from leading global brands into a single commissioned manifold.
Will it integrate with our existing SCADA / PLC?
Yes. As an in-house process-automation house, we integrate the valve cluster into new or existing PLC/SCADA systems with full HMI control, sequencing and event logging.
What capacities do you handle?
Any — from compact mini-dairy skids to large processing lines. Clusters are engineered to your specific flow matrix, not sold as fixed catalog units.
