A Whey Processing Plant turns cheese, paneer or casein whey — once an effluent problem — into high-value products: whey protein concentrate (WPC), lactose, and demineralised whey powder. Whey is clarified and pasteurised, concentrated by ultrafiltration to raise protein, then evaporated and spray-dried into powder, while the permeate yields lactose.
ATMAN Group designs and executes whey processing plants across the full capacity spectrum — from compact units recovering whey from a single cheese or paneer line, up to large WPC and lactose plants for federations and protein-ingredient brands.
Every plant integrates clarification, UF and RO membranes, evaporation and drying into one synchronised line — matched fouling control, thermal load and batch-to-pack traceability.
Whey is the dairy industry’s biggest hidden asset — a high-protein stream most plants still dump as effluent. A well-engineered recovery line is the difference between saleable WPC and lactose and a GPCB compliance headache. ATMAN sizes membranes, evaporation and drying around your whey volume and target product.
Typical Buyers We Work With
ATMAN builds whey processing plants for the full B2B dairy spectrum — cheese and paneer makers, cooperatives, casein plants, and protein-ingredient brands.
Cooperative dairy federations and district unions turning cheese and casein whey into saleable WPC and lactose instead of effluent.
02
Farmer Producer Organizations
Cheese and paneer plants adding whey recovery to monetise a by-product and cut effluent load.
03
Private Dairy Brands
Protein-ingredient and nutrition brands producing WPC for food, beverage and sports nutrition.
04
Brownfield Expansions
Existing dairy plants adding membrane filtration and drying to capture whey value.
05
Greenfield Projects
New dairy projects building integrated cheese or casein and whey-recovery capability from day one.
06
MSME
Upcoming dairy Entrepreneurs aspiring to foray into Dairy business.
Whey processing — WPC and lactose recovery flow — ATMAN Group
Whey Processing — From Whey to WPC and Lactose
A whey processing plant runs as a membrane-and-dry line: whey is clarified and pasteurised, concentrated by ultrafiltration to raise protein, optionally diafiltered, then evaporated and spray-dried into WPC powder, while the permeate is processed for lactose.

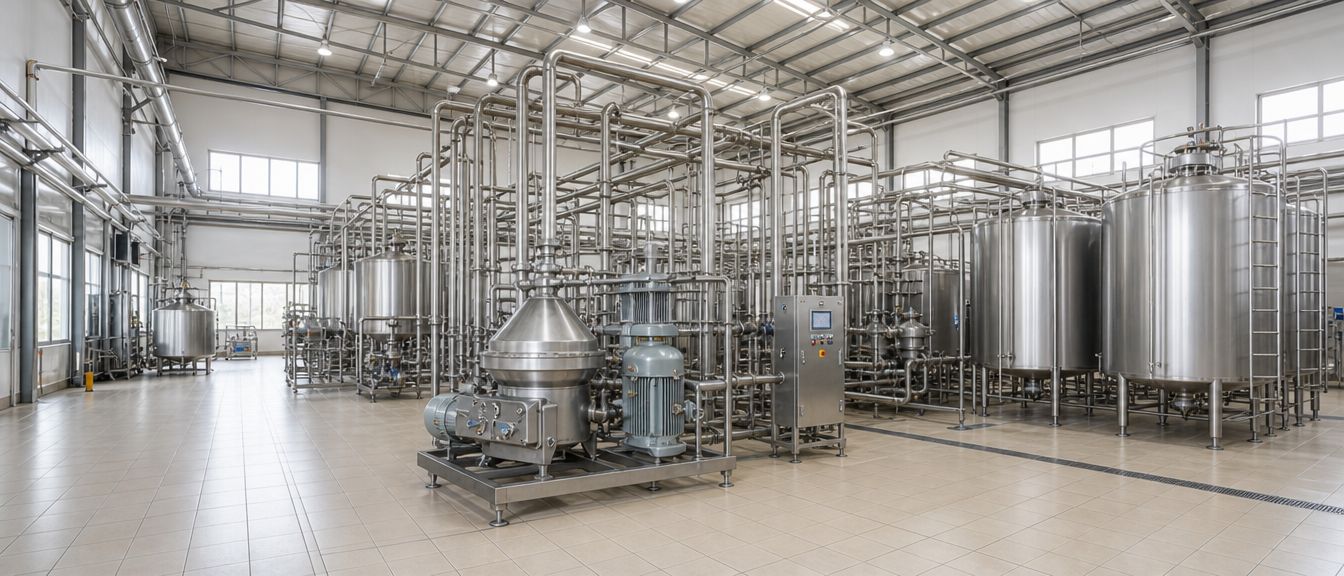

01. Whey Reception
Whey from cheese, paneer or casein production is collected, weighed and chilled, then screened to remove curd fines.
06. Evaporation
The retentate is concentrated by reverse osmosis or a vacuum evaporator to raise total solids before drying.
02. Clarification
Whey is clarified by centrifuge to remove residual fat and fine curd particles before membrane processing.
07. Spray Drying
Concentrate is atomised into hot air in the spray dryer, instantly removing moisture to form whey protein powder.
03. Pasteurisation
Clarified whey is pasteurised at around 72 degrees C and cooled to protect the membranes and ensure food safety.
08. Fluid-Bed Drying
Powder is dried and cooled on a vibro fluid-bed, building free-flowing, low-moisture WPC.

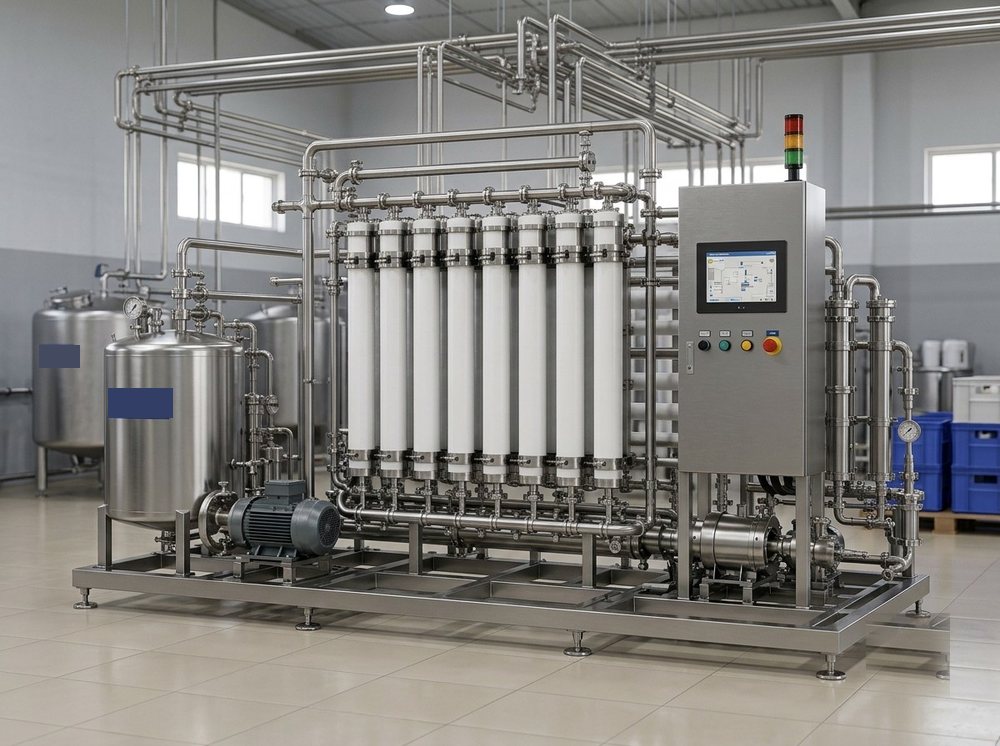

04. Ultrafiltration (UF)
Ultrafiltration membranes concentrate the whey, retaining protein as retentate while lactose and minerals pass into the permeate.
05. Standardization
The protein retentate is standardised to the target grade — WPC 35, 60 or 80 — before concentration and drying.

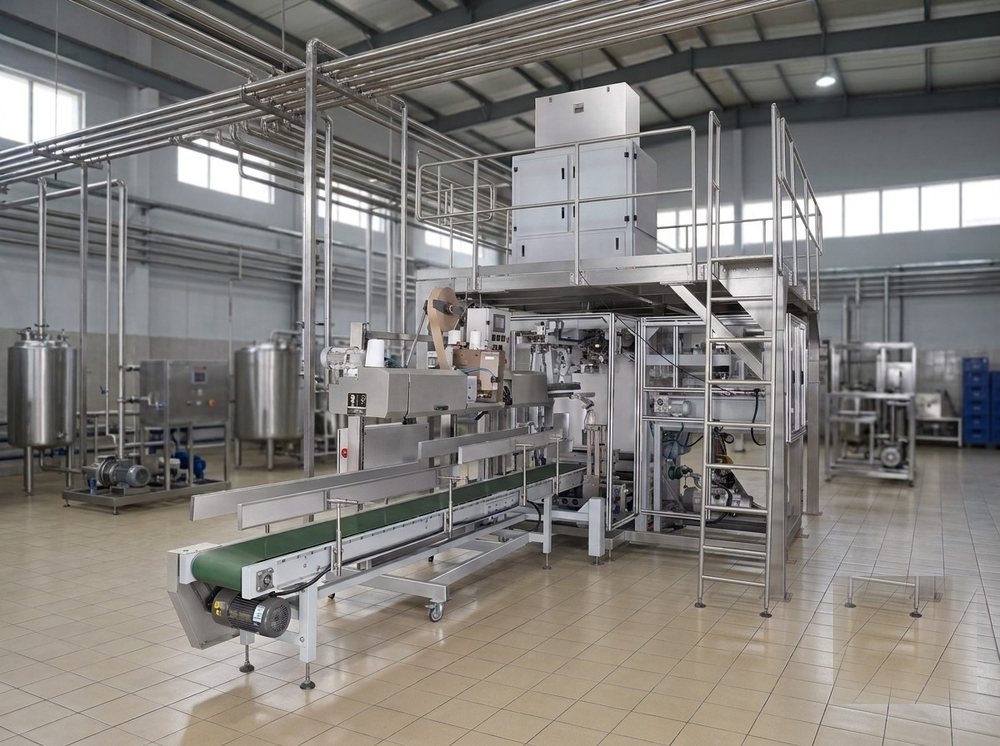

09. Sifting and Packing
Powder is sifted and packed into bags or tins with nitrogen flush and metal detection.
10. Dispatch / Packing Feed
WPC is packed and dispatched; the lactose-rich permeate is crystallised and dried for lactose recovery.
ATMAN engineers the full whey-recovery line as one integrated flow — from whey reception through ultrafiltration, drying and lactose recovery — sized to your whey volume and target product.
Equipment Scope — Whey Processing Plant
A complete whey processing plant integrates clarification, membrane filtration, evaporation, drying and lactose-recovery equipment into one engineered line:
01
Processing Line
The core equipment that clarifies, pasteurises and ultrafilters whey before concentration.
Whey Clarifier & Centrifugal Separator — fat & fines removal
Hygiene infrastructure and utility connections that keep the line food-safe and statutory-compliant.
CIP (Clean-in-Place) Skid with Acid/Caustic Tanks
CIP Heat Exchanger & Steam Injection
Compressed Air System
Chilled Water Circuit Piping
Boiler Connection Loop
03
Reception and Chilling
Whey reception and chilling infrastructure — collection tank, screen, clarifier and chilled storage.
Sanitary Stainless Steel Piping (SS-304).
Falling-Film Evaporator & Spray Dryer
Sanitary Valves & Pneumatic Actuators.
Inline Milk Filter
Flow Meters & Pressure Sensors.
04
MATERIAL HANDLING
Membrane, drying and lactose infrastructure — UF and RO skids, evaporator, spray and fluid-bed dryers, and lactose crystalliser.
Lactose Crystalliser, Fluid-Bed Dryer & Bagging Station
Chilled Water (PHE) Cooling System
Crate Handling & Washing System
Cold Storage Chamber Conveyor System
Insulated Cold Storage Doors
05
ELECTRICAL & AUTOMATION
The control nervous system of the plant — manufactured in-house by ATMAN for tighter integration and faster diagnostics.
MCC (Motor Control Center) Panel — In-House Manufactured
PLC-Based Sequence Control.
SCADA Dashboard for Real-Time Monitoring.
Variable Frequency Drives (VFDs)
Electrical Distribution Panel & Cable Tray Network.
06
Data Analytics
This is a flexible section where you can share anything you want. It could be details or some information about your service four.
Selected equipment views from ATMAN dairy plant projects.
Capacity Options — From Compact to Industrial Scale
ATMAN engineers whey processing plants sized to your daily whey volume and target product — WPC 35, 60 or 80, lactose, or demineralised whey — matching membrane area, evaporation and drying to your output.
Whey looks like waste — until you recover it. The reality: membranes foul, protein denatures, and effluent fines hammer your GPCB compliance if the line is wrong. Membrane and drying control are where engineering depth pays off. Here is what makes ATMAN the right partner.
Most equipment suppliers stop at the machine. ATMAN engineers the processing core and downstream packing as one system — matched piping, aligned CIP cycles, unified batch tracking. Zero split-vendor finger-pointing.
02
Single-Window Turnkey Execution
Design through commissioning and AMC under one contract. One team to call when the line throws an error at 2 AM. One accountable partner for plant uptime — not a vendor patchwork.
Whey valorisation is a membrane-and-thermal discipline. UF and RO design, fouling control, evaporation and spray drying are baked into our playbooks since 2008.
05
Compliance-First Engineering
All plants engineered for FSSAI, BIS-rated electricals, GPCB-norm effluent, and 3-A sanitary process design. Statutory audits pass first time — no costly retrofits later.
06
Modular Scalability Built-In
Initial plant designed with utility and floor headroom for additional membrane area and drying capacity. Scale-up is planned into the Day-1 layout.
Typical 5–9 month execution timeline — 7 phases
Project Execution — From Day Zero to First Litre Processed
A typical ATMAN whey processing plant project runs through four disciplined phases — from design freeze to first WPC bag.
Target throughput, product mix, shift pattern, and budget envelope locked. Raw-milk supply, site utilities, and statutory clearances assessed. Output: project scope and budgetary estimate. (1–2 weeks)
02
Process Design & Engineering
Detailed plant layout, membrane and dryer sizing, process and instrumentation diagrams, civil and utility drawings, and BOQ.
03
Equipment Manufacturing & Supply
In-house MCC and PLC panel fabrication, sanitary stainless pipework, and procurement of membrane, evaporation and drying equipment to spec.
04
Site Installation
Equipment positioning, sanitary piping erection, electrical and automation wiring, and insulation.
05
Commissioning & Validation
No-load testing, water trial, whey trial, and product trials validating protein, moisture and solubility before handover.
06
Operator Training & Handover
On-site training for operators, supervisors, and maintenance team. Standard operating procedures (SOPs), troubleshooting guides, and spare parts list handed over. Plant runs under ATMAN supervision for 1–2 weeks before formal takeover.
07
Annual Maintenance & After-Sales
Optional AMC covering preventive maintenance, spares supply, remote diagnostics, and emergency response. ATMAN remains your single point of contact through the plant’s operational life — not just up to commissioning.
Where ATMAN Has Delivered Whey Processing Plants
ATMAN has executed these projects for India’s largest cooperative dairy federations, NDDB-commissioned builds, regional unions and leading private dairy brands — most inside larger turnkey dairy plants.
A detailed project portfolio with client names, line capacities, commissioning timelines, and reference contacts is available on request to qualified buyers. Reach out via the project enquiry form below to receive dairy plant references relevant to your specific throughput, product mix, and geography.
Whey Processing Plant — FAQ
Capex varies with capacity, target product (WPC grade, lactose) and membrane area. A compact UF-only line starts modestly; full WPC-plus-lactose plants with evaporation and spray drying run into tens of crores. ATMAN sizes membranes, evaporation and drying to your whey volume and product to avoid over-capitalising.
Typically 8 to 14 months from design freeze to commissioning, depending on capacity, membrane and drying scope, and civil readiness. ATMAN runs design, fabrication and civil in parallel to compress the schedule.
Start by recovering whey from your existing cheese or paneer output, sizing UF to that volume, with headroom to add evaporation, drying and lactose recovery as demand grows.
Mandatory: FSSAI licence (central or state by turnover), GPCB / state pollution-board consent, municipal NOC, factory licence, fire NOC, and electricity sanction. Recommended: ISO 22000, HACCP, and BIS where applicable. ATMAN engineers plants for full compliance by default — no costly retrofits after commissioning.
Footprint scales with capacity and product mix — membrane skids are compact, but evaporation and spray drying need height. ATMAN provides a layout sized to your capacity and products.
WPC (whey protein concentrate) is 35 to 80 percent protein dried whey; WPI (isolate) is 90 percent plus protein via microfiltration or ion exchange; lactose is the milk sugar recovered from the permeate. ATMAN engineers the line for your target product mix.
