A Mozzarella Cheese Plant is a pasta-filata cheese line that turns milk into stretched-curd mozzarella — for pizza, retail blocks and balls. Milk is standardised and pasteurised, cultured and acidified, set with rennet, then the curd is cut, cooked, drained, and stretched in hot water before moulding, brining and packing.
ATMAN Group designs and executes mozzarella plants across the full capacity spectrum — from compact 1,000 LPD units for regional dairies, up to 200,000 LPD high-output pasta-filata lines for federations and major cheese brands.
Every plant integrates the wet process, cheese vats, cooker-stretcher and brining into one synchronised line — matched acidity control, cook curves, and yield-to-pack traceability.
Mozzarella and pizza cheese are among the fastest-growing dairy categories in India on the back of QSR and pizza demand — and quality lives in the acidity window and the stretch. A well-engineered pasta-filata line is the difference between consistent melt, stretch and yield and losses from over- or under-acidified curd. ATMAN sizes coagulation, cooking, stretching and brining around your output and product mix.
Typical Buyers We Work With
ATMAN builds mozzarella plants for the full B2B dairy spectrum — cooperatives, FPOs, cheese and QSR-supply brands, and integrated greenfield dairy projects.
Cooperative dairy federations and district unions adding mozzarella and pizza cheese to their value-added portfolio.
02
Farmer Producer Organizations
FPOs and regional dairies launching block or pizza mozzarella with a compact, scalable pasta-filata line.
03
Private Dairy Brands
Established cheese and food-service brands scaling mozzarella, pizza cheese and analogue packs.
04
Brownfield Expansions
Existing dairy or cheese plants adding a pasta-filata section to serve the booming pizza and QSR market.
05
Greenfield Projects
New dairy projects building integrated cheese and mozzarella capability from day one.
06
MSME
Upcoming dairy Entrepreneurs aspiring to foray into Dairy business.

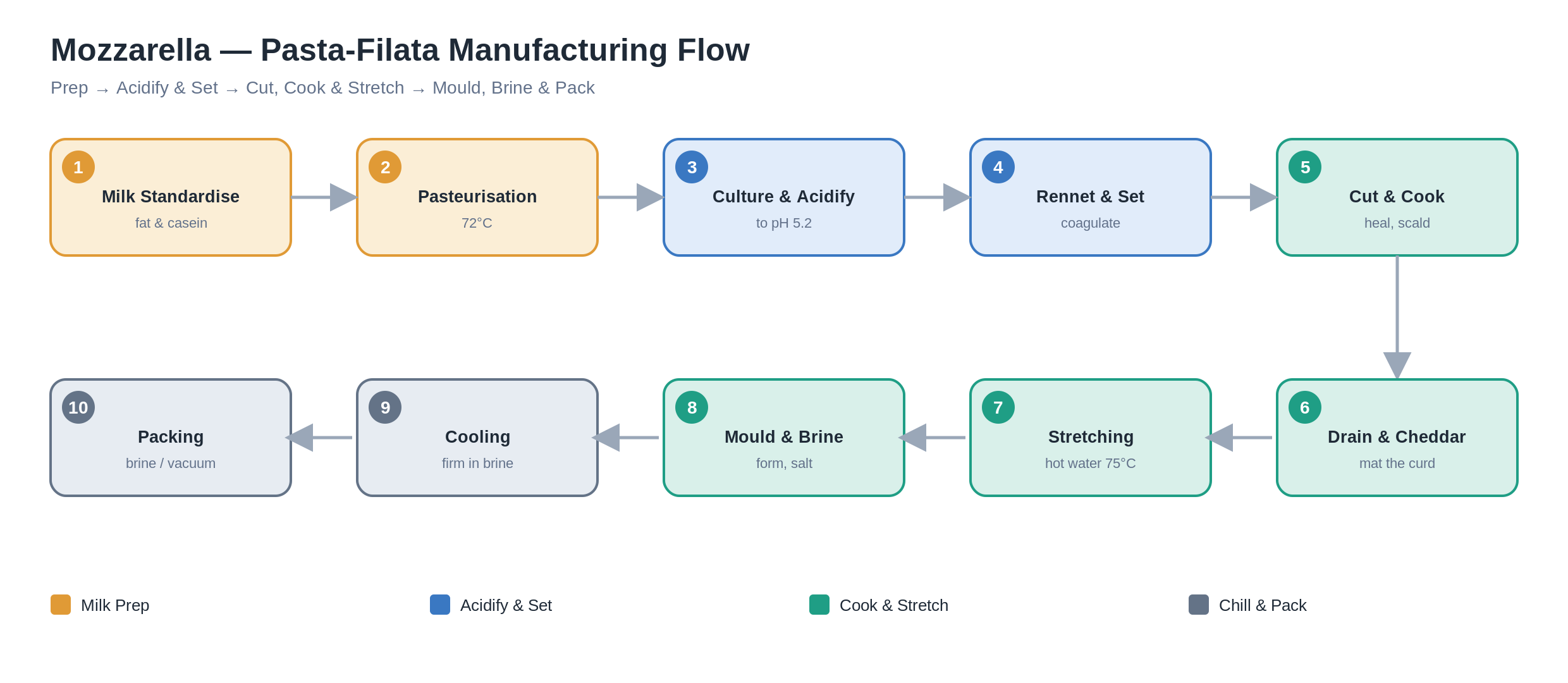

Mozzarella pasta-filata manufacturing flow — ATMAN Group
Mozzarella Production — From Milk to Stretched Curd
A mozzarella plant runs as a pasta-filata line: milk is standardised, pasteurised, cultured and acidified, set with rennet, then the curd is cut, cooked, drained, stretched in hot water, and moulded, brined and packed.
01. Milk Reception
Raw milk arrives by road tanker, is weighed, sampled and chilled to 4 degrees C in insulated silos before processing.
06. Pasteurization
Standardised milk is pasteurised at around 72 degrees C for 15 seconds, then cooled to the culturing temperature.
02. Quality Testing & Standardization
Fat, protein and casein are tested; milk is standardised to the casein-to-fat ratio mozzarella yield and stretch depend on.

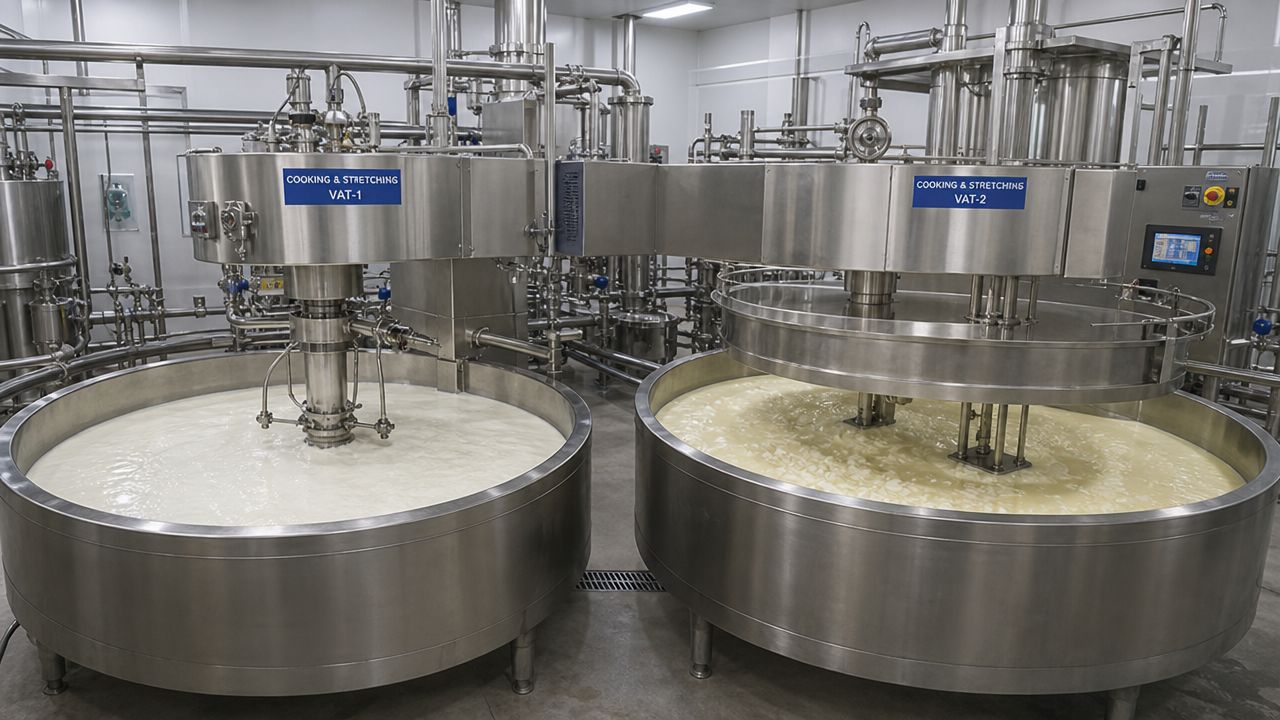

07. Culture and Acidification
Thermophilic starter culture is added and the milk is held to acidify toward pH 5.2 — the acidity window that lets the curd stretch cleanly.
03. Clarification & Chilling
Milk is clarified to remove sediment, then chilled and held ready for standardisation.

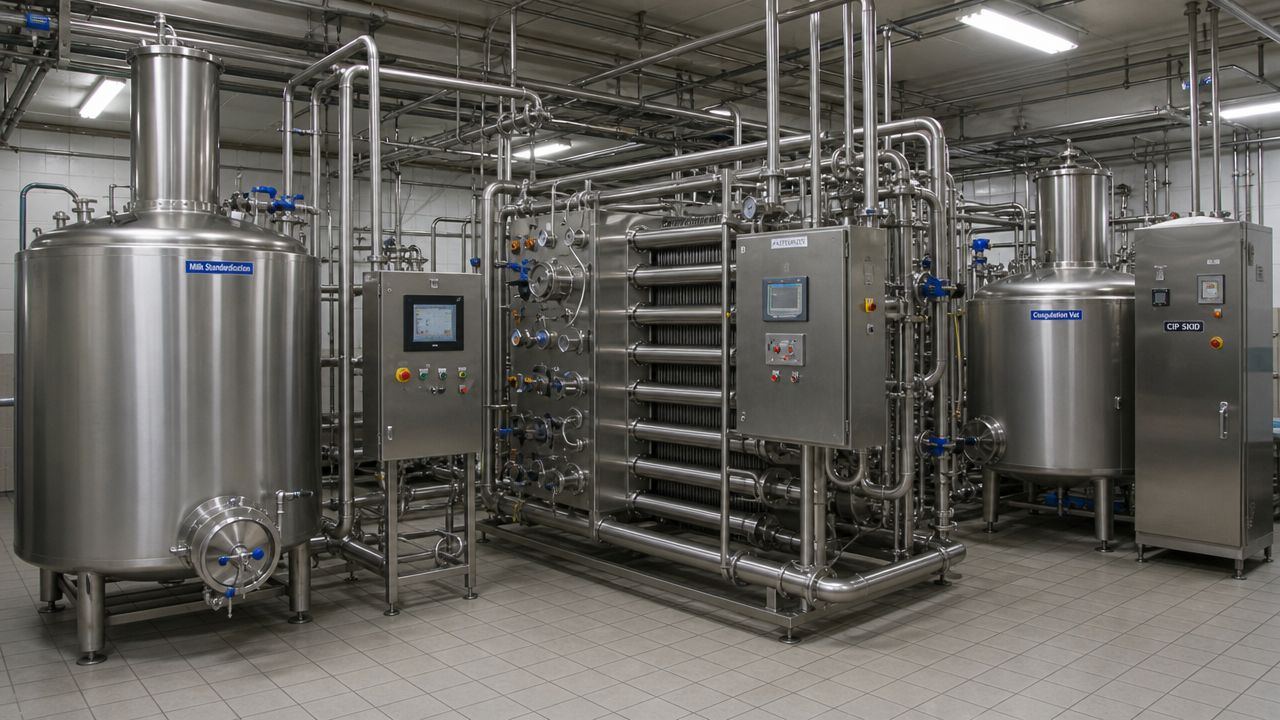

08. Rennet Set, Cut and Cook
Rennet is added to coagulate the milk into a firm gel; the curd is then cut, healed and cooked (scalded) to expel whey and build texture.
04. Cream Separation
A centrifugal separator sets the fat to hit the precise casein-to-fat ratio mozzarella requires.
05. Standardization
Skim and cream are re-blended to the exact casein-to-fat ratio before culturing — the lever for yield and melt.

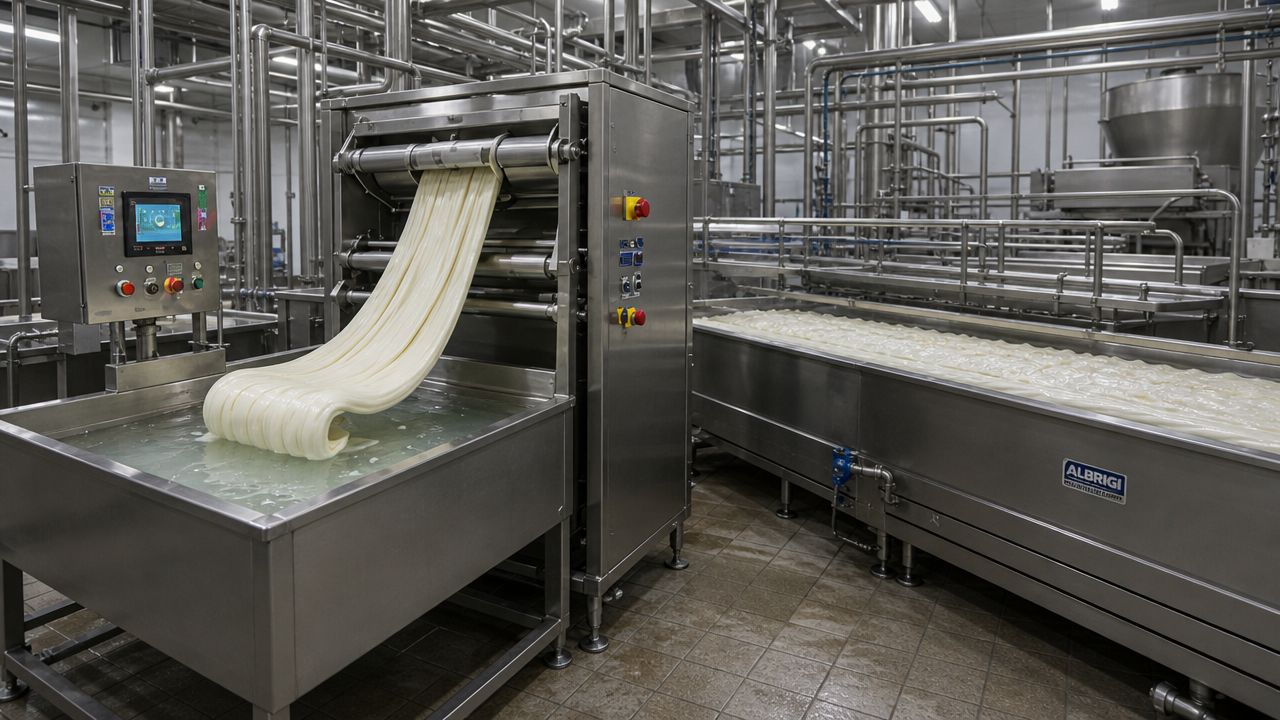

09. Stretching and Moulding
Drained curd is cheddared, then stretched and kneaded in hot water at 70 to 80 degrees C — the pasta-filata step — and moulded into balls, blocks or pizza loaves.

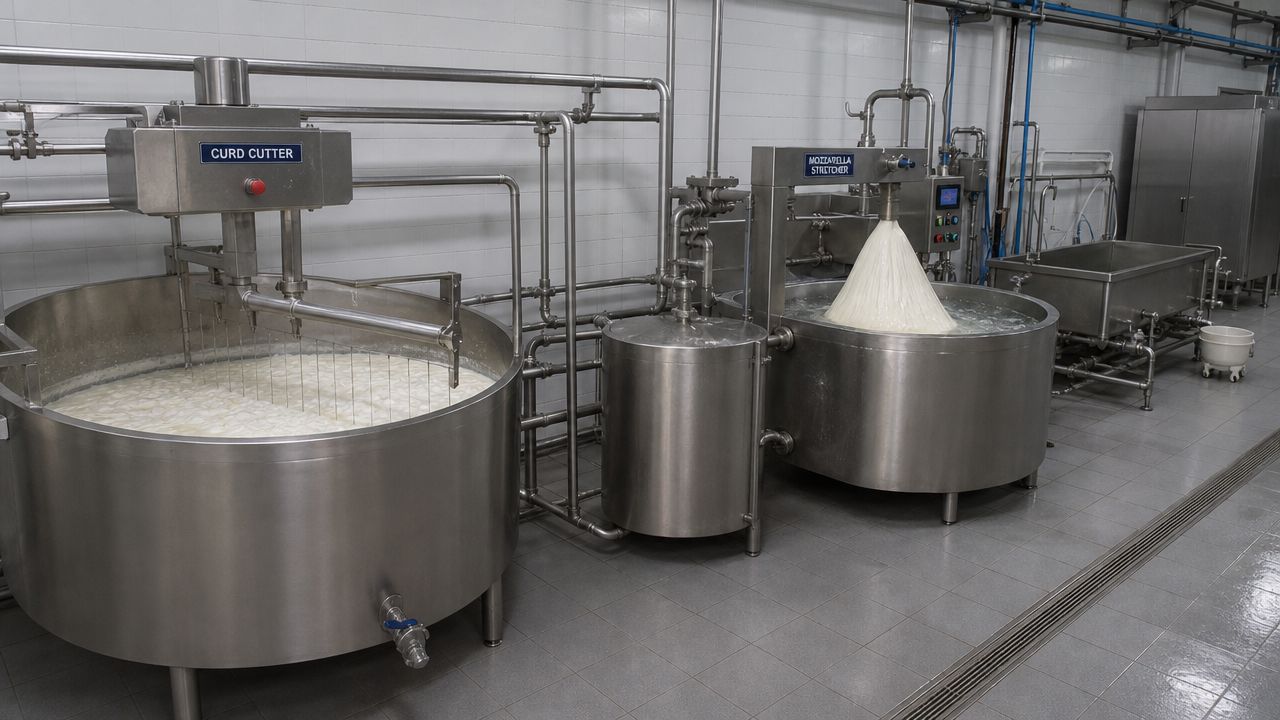

10. Dispatch / Packing Feed
Moulded cheese firmed and brined, then packed in brine or vacuum — ready for chilled dispatch to pizzerias, QSR chains and retail.
ATMAN engineers the full pasta-filata line as one integrated flow — from milk reception through acidification, cooking, stretching and brining — sized to your output and pack format.
Equipment Scope — Mozzarella Cheese Plant
A complete mozzarella plant integrates wet-process, coagulation, cooking, stretching and brining equipment into one engineered line:
01
Processing Line
The core wet-process equipment that standardises, pasteurises and cools milk before culturing and coagulation.
The control nervous system of the plant — manufactured in-house by ATMAN for tighter integration and faster diagnostics.
MCC (Motor Control Center) Panel — In-House Manufactured
PLC-Based Sequence Control.
SCADA Dashboard for Real-Time Monitoring.
Variable Frequency Drives (VFDs)
Electrical Distribution Panel & Cable Tray Network.
06
Data Analytics
This is a flexible section where you can share anything you want. It could be details or some information about your service four.
Selected equipment views from ATMAN dairy plant projects.
Capacity Options — From Compact to Industrial Scale
ATMAN engineers mozzarella plants across capacities from 1,000 to over 200,000 LPD milk intake — sizing coagulation, cooking, stretching and brining to your output and pack format.
Mozzarella looks simple — set, cook and stretch. The reality: the acidity window is narrow, and a tenth of a pH off ruins stretch, melt and yield. Process control is where engineering depth pays off. Here is what makes ATMAN the right partner.
Most equipment suppliers stop at the machine. ATMAN engineers the processing core and downstream packing as one system — matched piping, aligned CIP cycles, unified batch tracking. Zero split-vendor finger-pointing.
02
Single-Window Turnkey Execution
Design through commissioning and AMC under one contract. One team to call when the line throws an error at 2 AM. One accountable partner for plant uptime — not a vendor patchwork.
Cheese-making is a precise biochemical discipline. Acidity control, cook curves, stretch temperature and brining are baked into our playbooks since 2008.
05
Compliance-First Engineering
All plants engineered for FSSAI, BIS-rated electricals, GPCB-norm effluent, and 3-A sanitary process design. Statutory audits pass first time — no costly retrofits later.
06
Modular Scalability Built-In
Initial plant designed with utility and floor headroom for additional cooking, stretching and brining capacity. Scale-up is planned into the Day-1 layout.
Typical 5–9 month execution timeline — 7 phases
Project Execution — From Day Zero to First Litre Processed
A typical ATMAN mozzarella plant project runs through four disciplined phases — from design freeze to first stretched batch.
Target throughput, product mix, shift pattern, and budget envelope locked. Raw-milk supply, site utilities, and statutory clearances assessed. Output: project scope and budgetary estimate. (1–2 weeks)
02
Process Design & Engineering
Detailed plant layout, vat and cooker-stretcher sizing, brine system design, process and instrumentation diagrams, civil and utility drawings, and BOQ.
03
Equipment Manufacturing & Supply
In-house MCC and PLC panel fabrication, sanitary stainless pipework, and procurement of cheese-making and stretching equipment to spec.
04
Site Installation
Equipment positioning, sanitary piping erection, electrical and automation wiring, and insulation.
05
Commissioning & Validation
No-load testing, water trial, milk-on trial, and cheese trials validating acidity, stretch, yield and moisture before handover.
06
Operator Training & Handover
On-site training for operators, supervisors, and maintenance team. Standard operating procedures (SOPs), troubleshooting guides, and spare parts list handed over. Plant runs under ATMAN supervision for 1–2 weeks before formal takeover.
07
Annual Maintenance & After-Sales
Optional AMC covering preventive maintenance, spares supply, remote diagnostics, and emergency response. ATMAN remains your single point of contact through the plant’s operational life — not just up to commissioning.
Where ATMAN Has Delivered Mozzarella & Adjacent Cheese-Family Plants
ATMAN’s cheese-family experience is built on the same coagulation, curd-handling, brine and cold-chain systems we deliver on paneer and curd plants — for cooperative federations and NDDB-commissioned projects. Below are the closest executed references.
A detailed project portfolio with client names, line capacities, commissioning timelines, and reference contacts is available on request to qualified buyers. Reach out via the project enquiry form below to receive dairy plant references relevant to your specific throughput, product mix, and geography.
Mozzarella Cheese Plant — FAQ
Capex varies with capacity, automation and pack format. A compact mozzarella line starts modestly; high-output continuous cooker-stretcher lines with automated brining and packing run higher. ATMAN sizes coagulation, stretching and brining to your output and product mix to avoid over-capitalising.
Typically 6 to 10 months from design freeze to commissioning, depending on capacity, automation depth and civil readiness. ATMAN runs design, fabrication and civil in parallel to compress the schedule.
Start with the capacity that comfortably covers your committed QSR or retail offtake, with headroom to add cooking and stretching lines as demand grows.
Mandatory: FSSAI licence (central or state by turnover), GPCB / state pollution-board consent, municipal NOC, factory licence, fire NOC, and electricity sanction. Recommended: ISO 22000, HACCP, and BIS where applicable. ATMAN engineers plants for full compliance by default — no costly retrofits after commissioning.
Footprint scales with capacity — roughly 2,000 to 6,000 sq ft for a mid-size line including process, cheese-making, brining, cold storage and utilities. ATMAN provides a layout sized to your capacity.
Real mozzarella is pasta-filata cheese made by stretching acidified curd; analogue and processed pizza cheese use vegetable fat and emulsifiers for cost and melt. ATMAN engineers the line for true mozzarella, pizza cheese, or both.
